PVC Compact Ball Valve Red Tap | Durable Leak‑Proof Flow Control

Product Description

ERA PVC Imperial Compact Ball Valves: Unmatched Reliability for Demanding Systems

Ideal for residential/commercial plumbing, irrigation, water management systems, chemical transfer (non-corrosive fluids), water treatment plants, industrial process lines, and certified gas distribution. The PVC Compact Ball Valve Red Tap delivers precision flow control across critical infrastructures.

Technical Product Specification

Place of Origin: Made in China

Dimensions(mm): 1/2”-6”

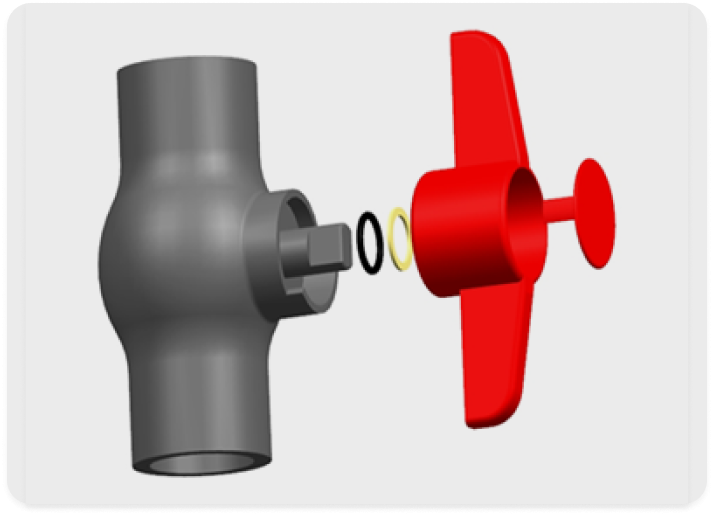

Material:

Body: ERA Premium LEAD FREE UNPLASTICIZED Polyvinyl chloride (PVC-U)

Handle: ABS

Rubber ring: EPDM

Seal: TPE

Inside ball: PP

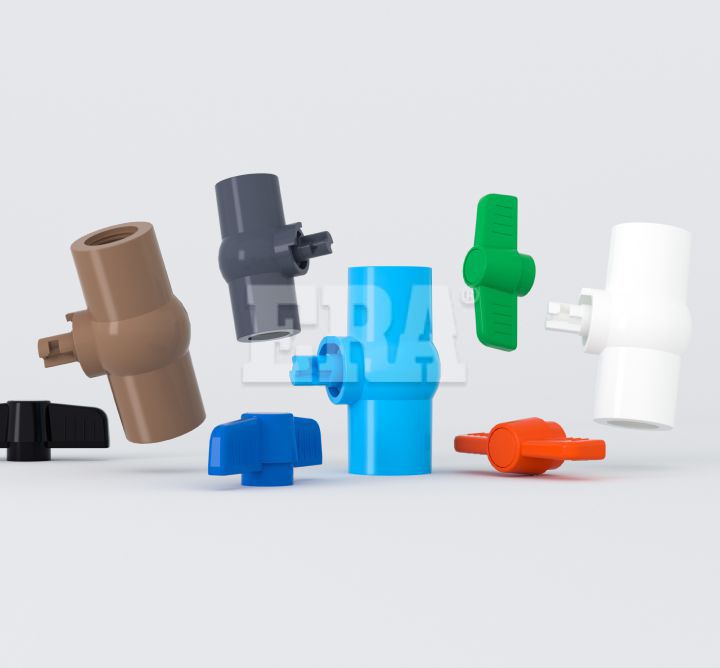

Color:

Body: White, dark grey, blue, brown

Handle: Black, red, blue, green

Size	NPTThd./in	BSPTThd./in	JIS(mm)	BS(mm)	ANSI(mm)	DIN(mm)
15mm(1/2")	14	14	22	22	21.34	20
20mm(3/4")	14	14	26	26	26.67	25
25mm(1")	11.5	11	32	34	33.4	32
32mm(1 1/4")	11.5	11	38	42	42.16	40
40mm(1 1/2")	11.5	11	48	48	48.26	50
50mm(2")	11.5	11	60	60	60.33	63
65mm(2 1/2")	8	11	76	76	73	75
80mm(3")	8	11	89	89	88.9	90
100mm(4")	8	11	114	114	114.3	110
150mm(6")					168.8	160

Manufacturing Standards: · JIS (JIS2003-94) · BS (BS3505) · ANSI (ASTM F1970) · DIN (ISO1452-4) · CHINA (GBT 10002.3-2011)

Approvals and certifications: · Certified by NSF 14 & 61 · Certified by UPC · Certified by CE · Certified by WATERMARK

Meathod of Jointing:

· Solvent cement joint with pipes · Threaded joint

Working Pressure:

PN16

Working Temperature:

0-45 DEGREE

ERA VALVE ADVANTAGES:

· 50 years quality gaurantee

· 13 international certification

· Strict quality control

· Good raw material and spare parts ensure exceellent mechnical and chemical properties

Why Choose ERA

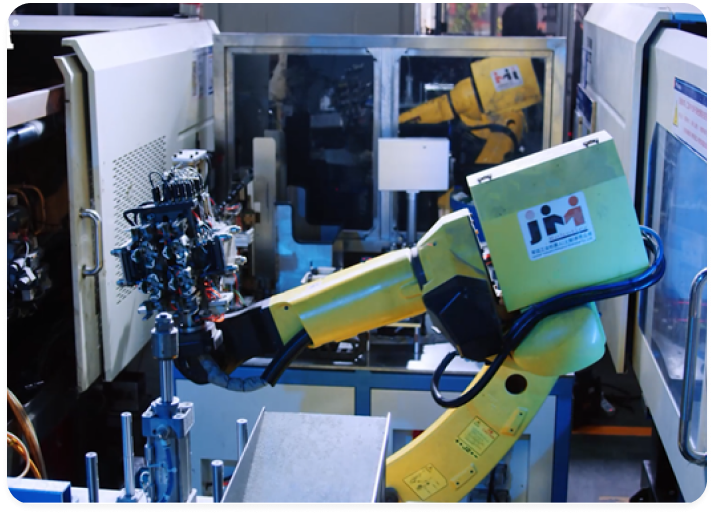

Our vertical integration—featuring 200+ in-house injection molds and 67 extrusion lines—ensures absolute quality control. We formulate proprietary PVC-U compounds and utilize robotic assembly for unmatched consistency, producing 500K+ PVC Compact Ball Valve Red Tap units monthly. This includes DIN 20 Plastic Compact Ball Valve, DIN 25 Plastic Compact Ball Valve, DIN 160 Plastic Compact Ball Valve, and JIS PVC Compact Ball Valve standards.

Rigorous Quality Control

Every PVC Compact Ball Valve Red Tap undergoes 100% hydrostatic testing at 1.5x working pressure and 2,500+ ISO 8659 cycle tests. Material integrity is verified (Vicat ≥74°C, oven tests per ISO 1452-4). Full batch traceability via laser-marked QC IDs guarantees accountability.

Unrivaled Service & Support

Backed by an industry-leading 50-year warranty, our 1/2”-6” PVC Compact Ball Valve range complies with 13+ global certifications (AS/NZS, EN, ASTM). Access VR installation simulators, multilingual documentation, and reliable FOB Ningbo/Shanghai logistics (30-45 day lead time).

Essential Maintenance & Repair Guide

Operational Best Practices

Opening/Closing: Rotate red handle 90° – max hand torque ≤ 50 Nm (tools prohibited).
Freeze Protection: Drain valves below 0°C ambient.
Chemical Exposure: Rinse after pH 2-12 fluid transfer.

Troubleshooting Solutions

Stem Leakage: Tighten bonnet nut (1/4 turn max).
Seal Wear: Replace with ERA SEAL-UCB01 kits (EPDM/TPE).
Handle Stiffness: Apply silicone grease to stem quarterly.

Repair Components
Comprehensive kits for sizes 1/2"–6" include seals, O-rings, and snap rings.

ERA Valve Quality Control

Test item	Test reqirements	Test frequency
Dimension	Connect end Dimension: （Top，Middle，end）by plug gauge or caliperThread: by gauge（as per the standard ）	Once per batch
Seat tightness test	1 hour hydrostatic test (top seal, bottom seal, low pressure test)	Once per batch
Torque test	ACCORDING ISO8233	Once per day
Life test	Tested according to ISO8659 and cycled 2500 times, the component has no leakage. During the test, the inside of the sample is filled with water, the outside is air, the internal pressure is the nominal pressure, and the test is conducted at room temperature at a flow rate of (1±0.2) m/s.	Once per day
Vicor softening temperature	≥74℃	Once per day
Oven test	Standard of ISO1452-4	Once per day
Valve shell streght test	No leaking ,no break	Once per day
Appearance	Smooth, uniform colour, no defects such as cracks, bubbles, peeling, severe cold spots, obvious variegation, decomposition and discoloration	100% test
Pressure test	Close and open pressure test（1/2" - 2" 6KG keep 15second，above 2" 8KGS keep 15 second）	100% test

Why ERA's PVC Compact Ball Valve Red Tap Stands Apart

With NSF-certified labs, vertical manufacturing, and 500K+ monthly capacity, ERA guarantees the PVC Compact Ball Valve Red Tap outperforms industry lifespans. Our 50-year warranty reflects unwavering confidence in every red-handle valve shipped from Zhejiang, cementing trust for decades in your plumbing or industrial systems. Depend on ERA for your PVC Compact Ball Valve Red Tap needs.
